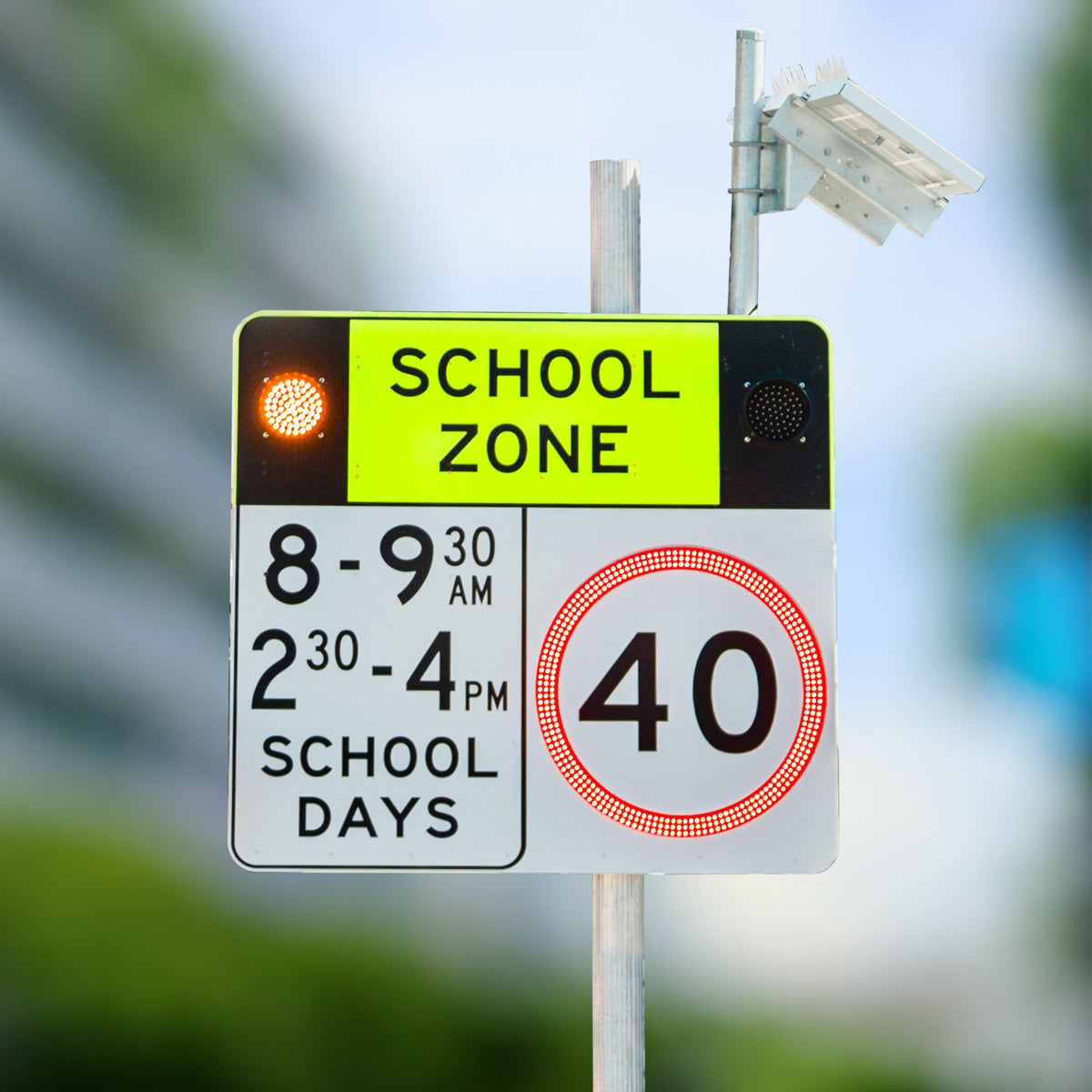

NSW LED School Zone Signs
NSW LED School Zone Signs
In 1999, Hi-Vis Group invented the original Flashing LED School Zone sign.
These signs have had a dramatic impact on the reduction of incidents and fatalities around NSW School Zones. To date, Hi-Vis Group has produced hundreds of School Zone signs throughout NSW.
NSW SPECIFICATIONS
- Cabinet Size: 1135mm height x 1200mm width x 180mm depth
- Lantern Size: 127.5 mm diameter
- Annulus Size: 571mm diameter
SIGN INCLUSIONS
- 3M Diamond Grade reflective printed as pictured
- Sign controller
- Website for data collection & managing sign configuration
- Default function: Lanterns flash alternately with annulus
- Hours to flash are programmed through an easy web-based interface
- When outside set school zone times sign is blank
- Cabinet is grey powder coated
- Monitoring of the individual LED performance
- IP65 water & dust rating
- Rain & light sensor. Varies brightness of LEDs to suit local conditions & increases battery life
- Strut mountings are the same as standard road signs
OPTIONS
- Solar & battery kit
- WIFI connectivity
- SMS reboot
- Installation
- 12VDC or 240VAC
